Simple intuitive UI flow
Build the flow for how you make moulds, using the range of automated CAD nodes available. Customise and build out as many flows as required for your processes.
AUTO MOULD
Turn your part CAD into production-ready mould CAD in minutes, with a fully customisable automated online CAD flow.
- Direct from part CAD
- Fully configurable flow
- Multiple material options
- Automated DFM checks
Auto Mould Features
Full STEP CAD output

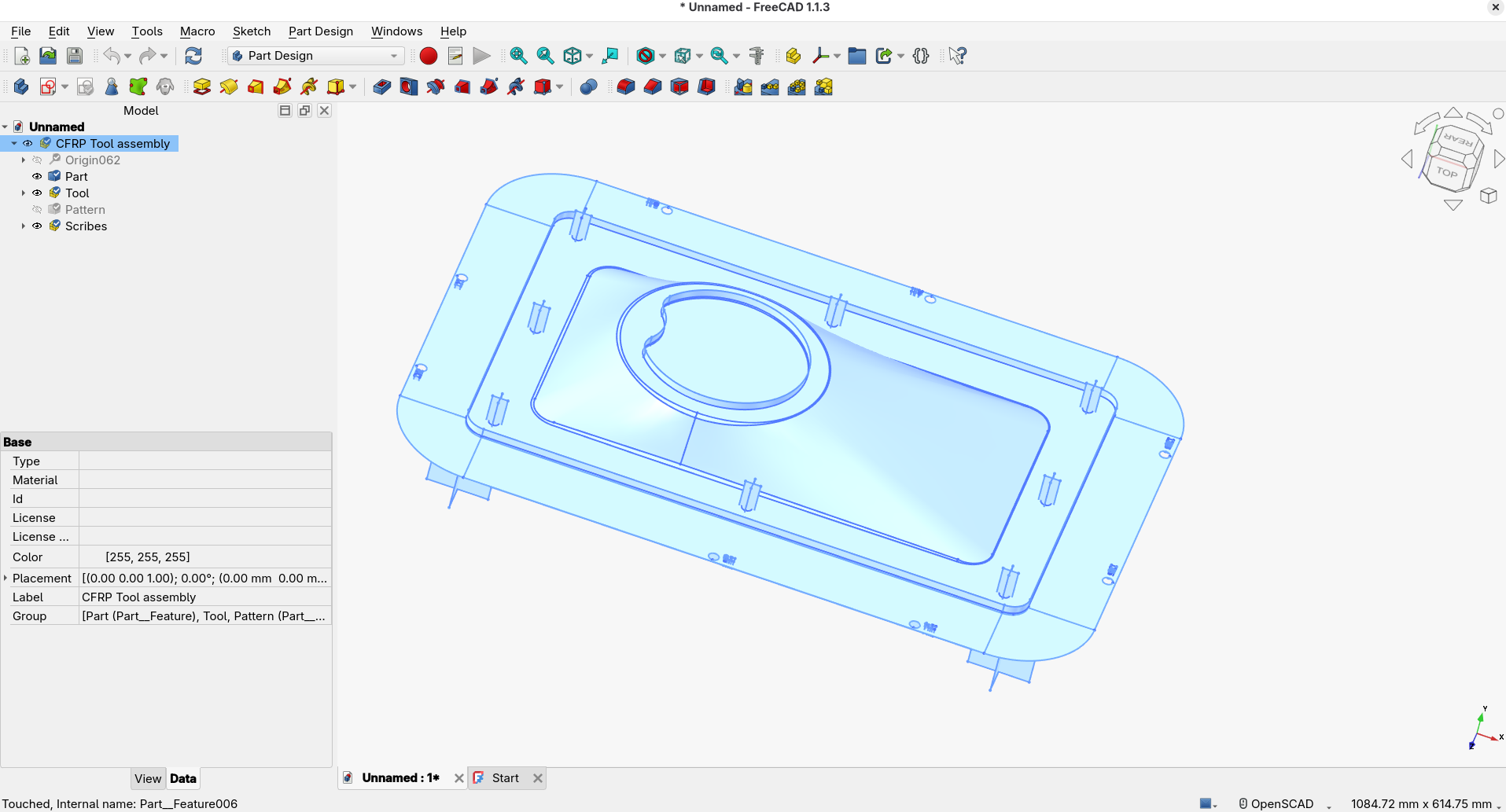

The output of each automated CAD node is a full STEP CAD file, laid out in a standard tree structure.

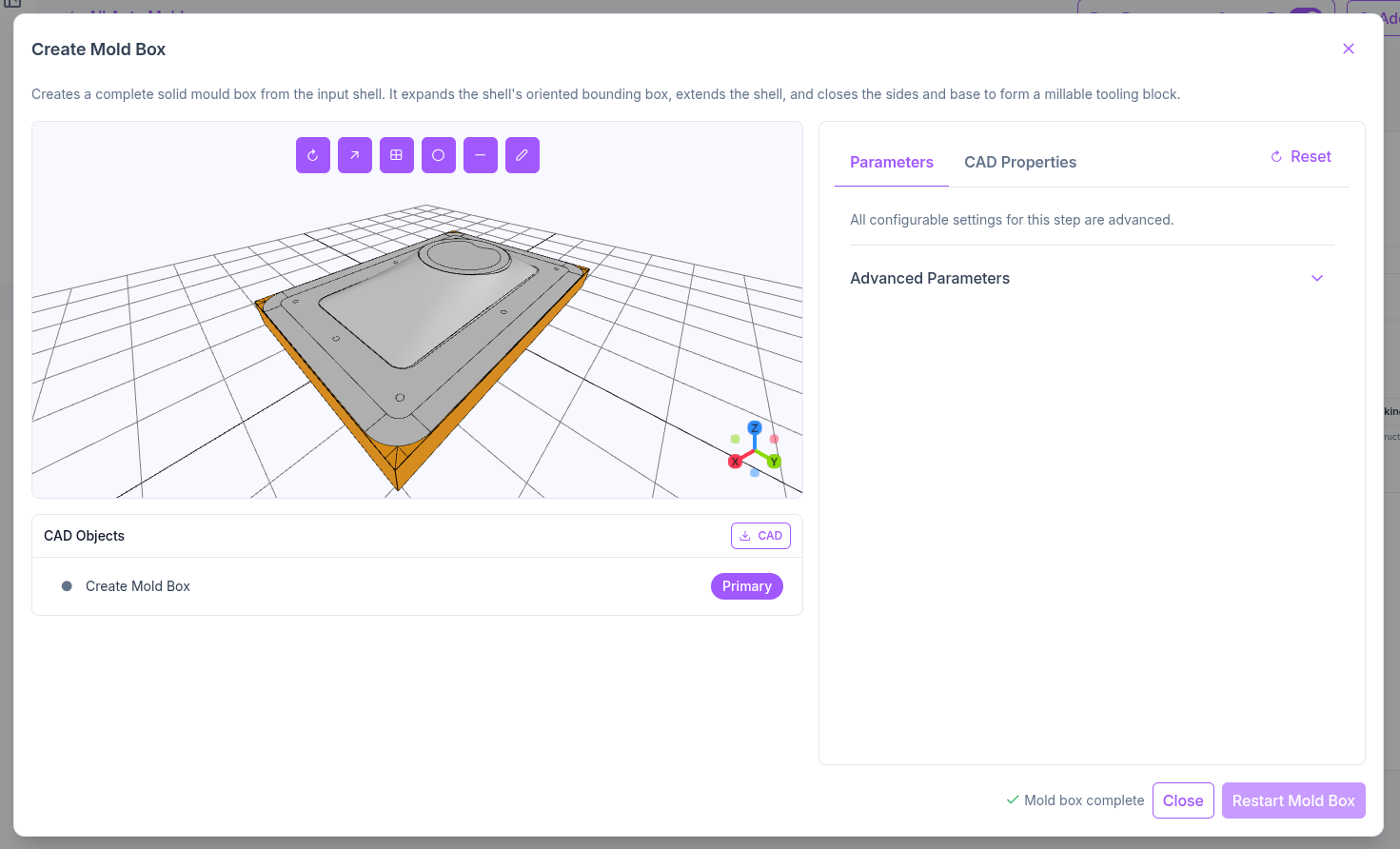

Moulds, patterns and more generated
Full step files for patterns, moulds, scribe lines, backing structures and more are generated directly from the software, giving you all you need to make the real mould.
Multiple material options
Moulds and patterns can be generated in a range of materials, including composites, metallics and tooling boards, so that the software can fit to your processes.
Full pull direction and split generation

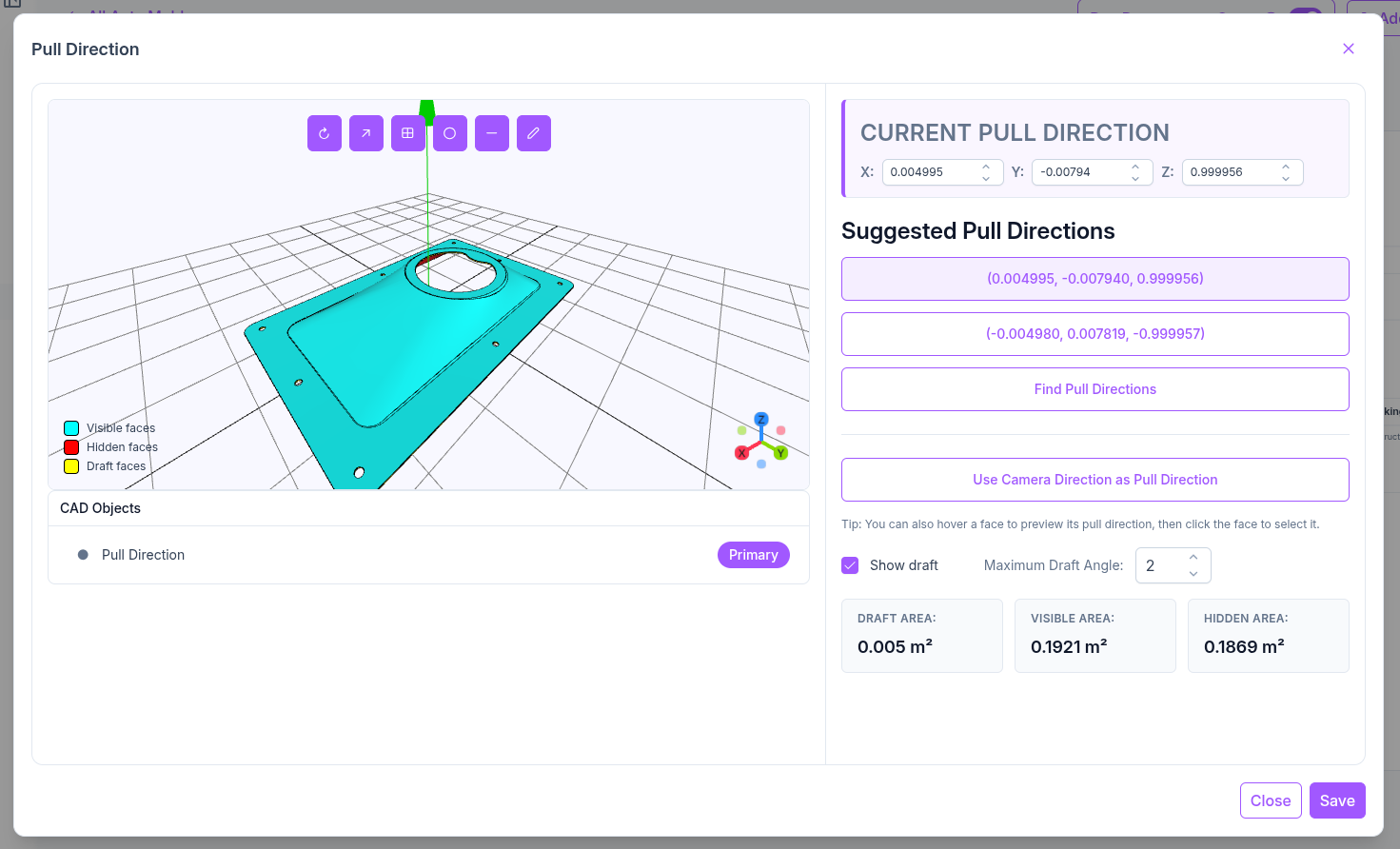

Pull directions and A surfaces detected and visualised, and full part split full generated from these.
Backing structures generated

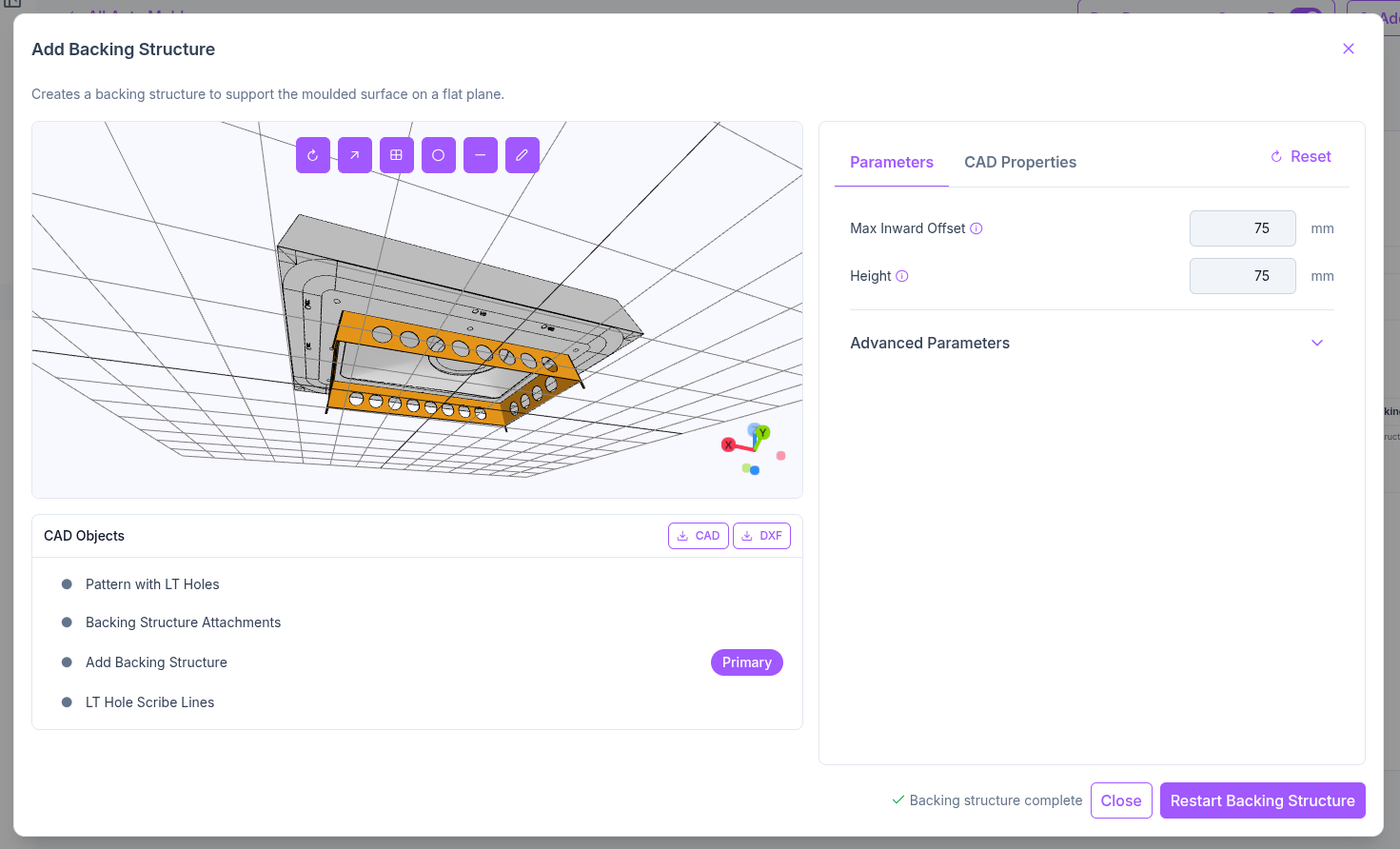

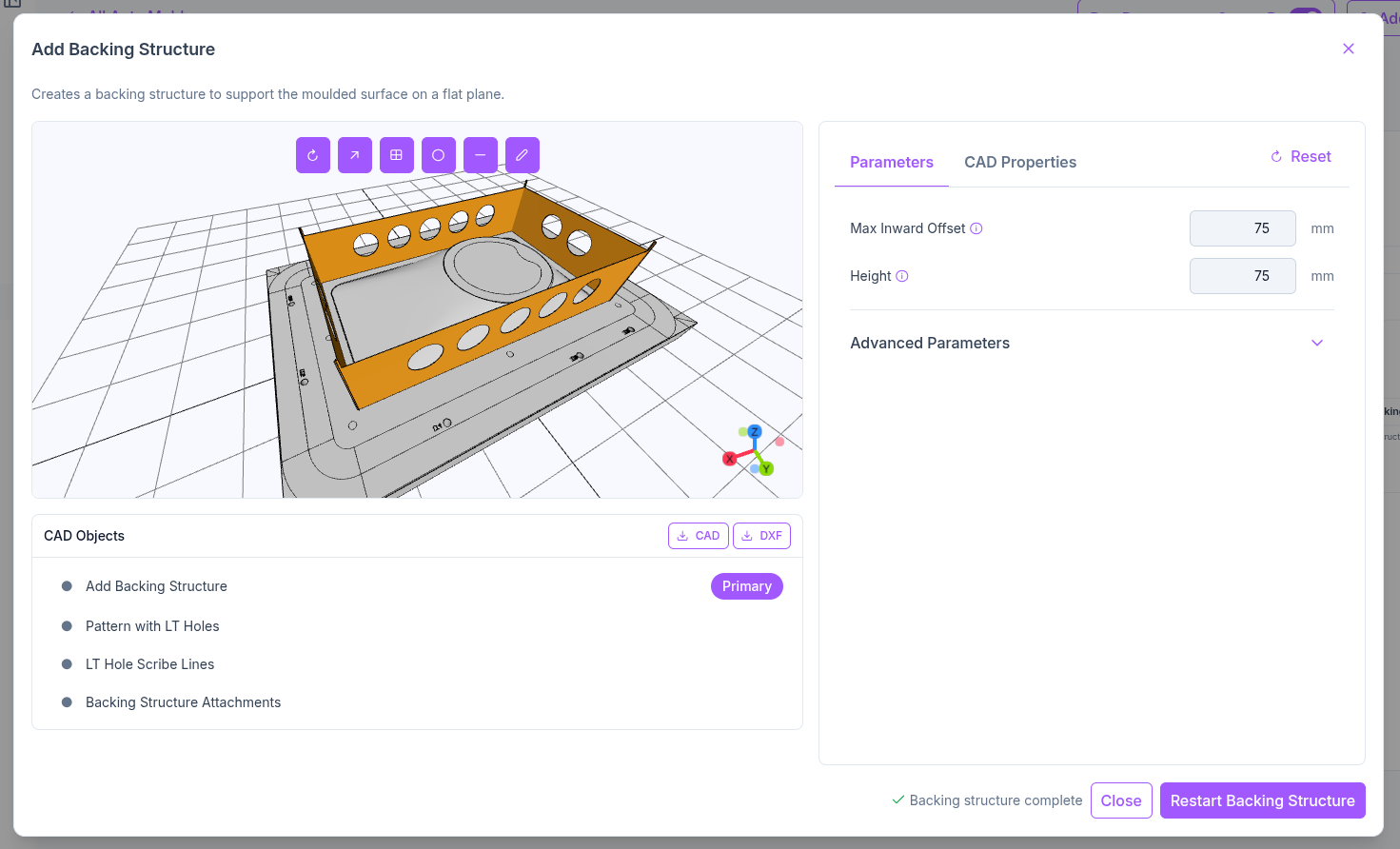

Full backing structures can be optionally generated for composite moulds, with options for airflow hole layout, and this can be exported in STEP or DXF format.
Inside Auto Mould
Splits and draft analysis

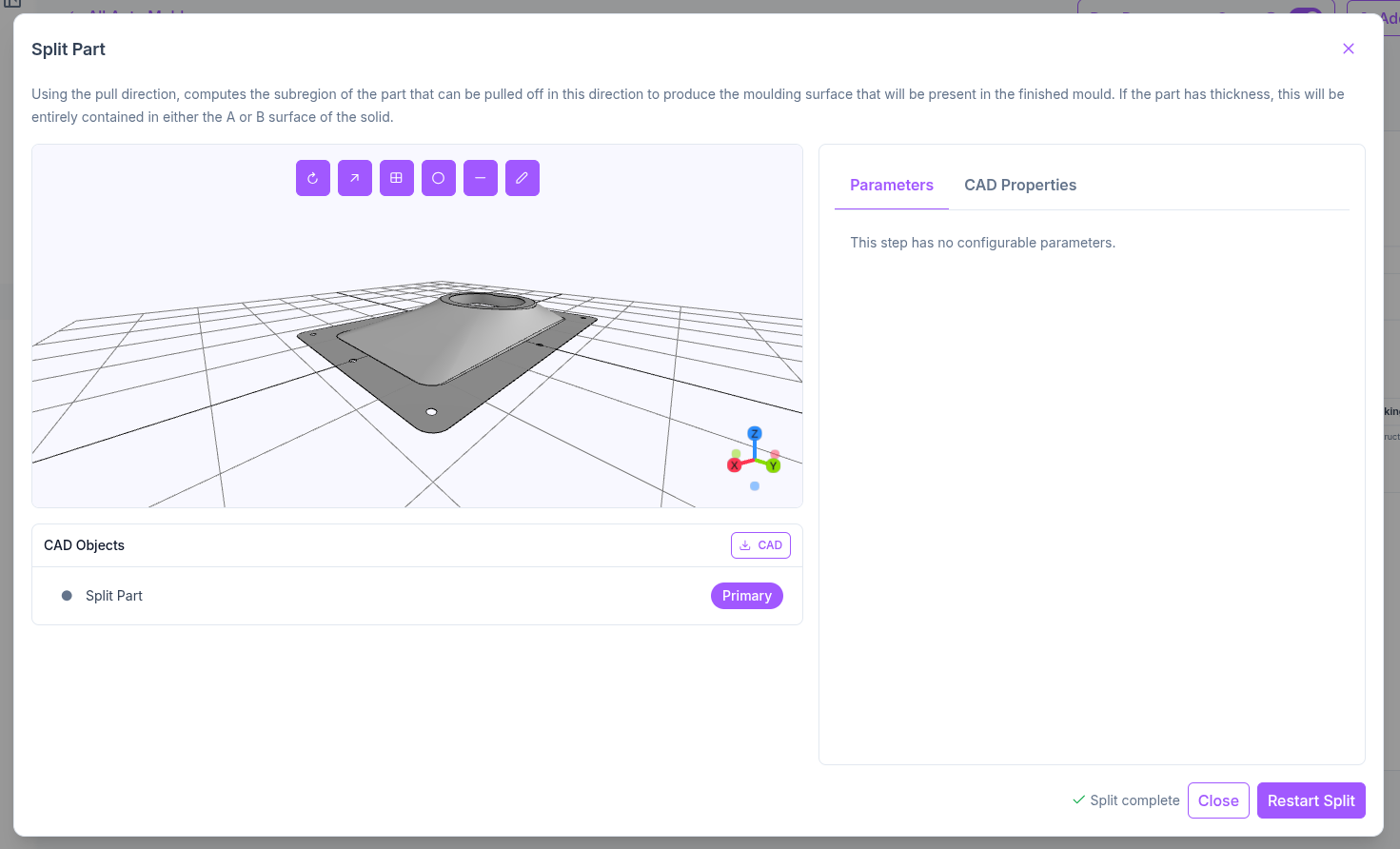

Splits, pull directions and configurable draft are calculated and clearly visualised.

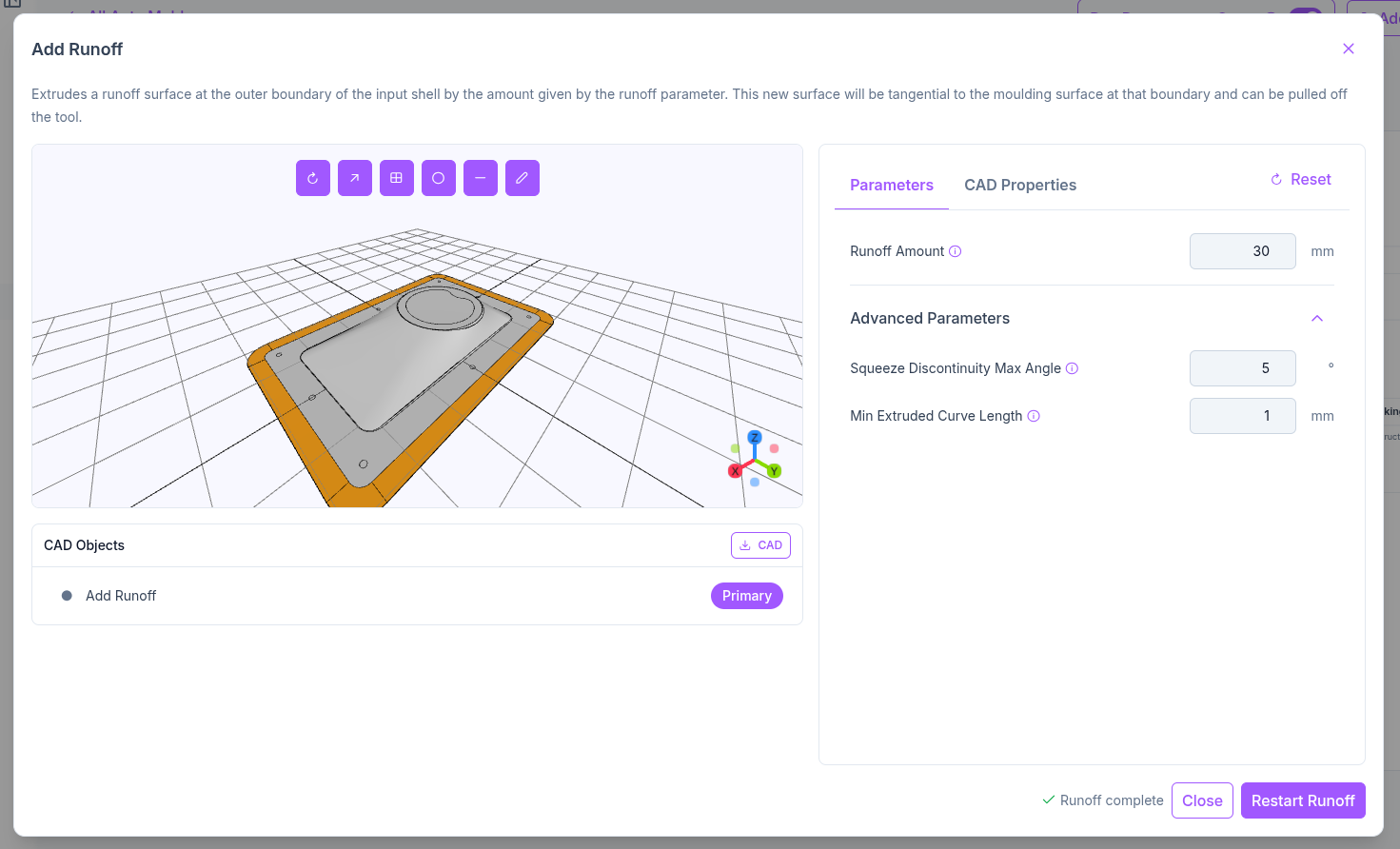

Every step fully configurable
Parameters on each step give you the control for everything, from how much runoff is added to custom text scribe lines.
Full CAD assemblies generated

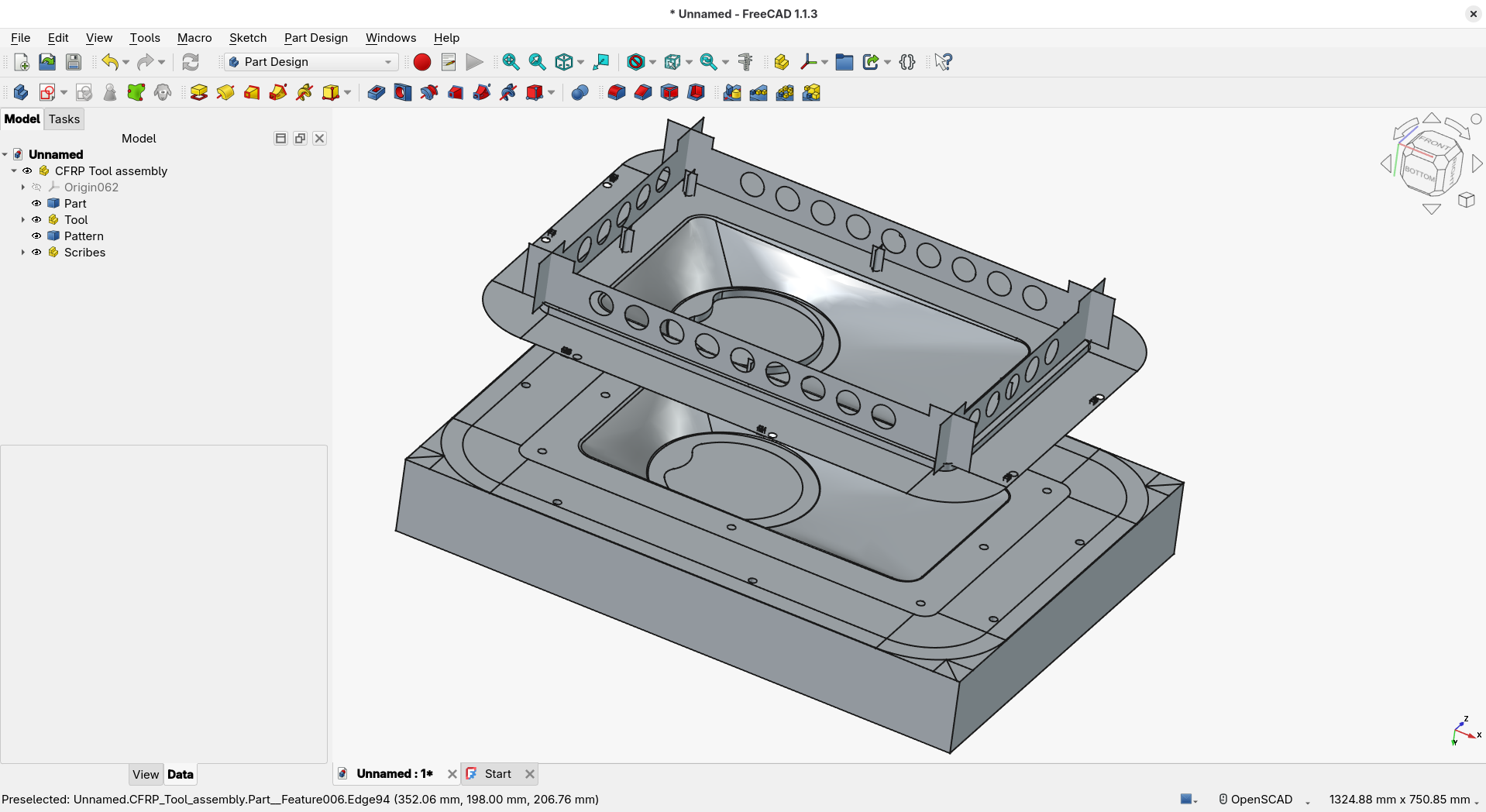

Build up full mould, pattern, backing structure and scribe line CAD assemblies directly within the software in minutes.

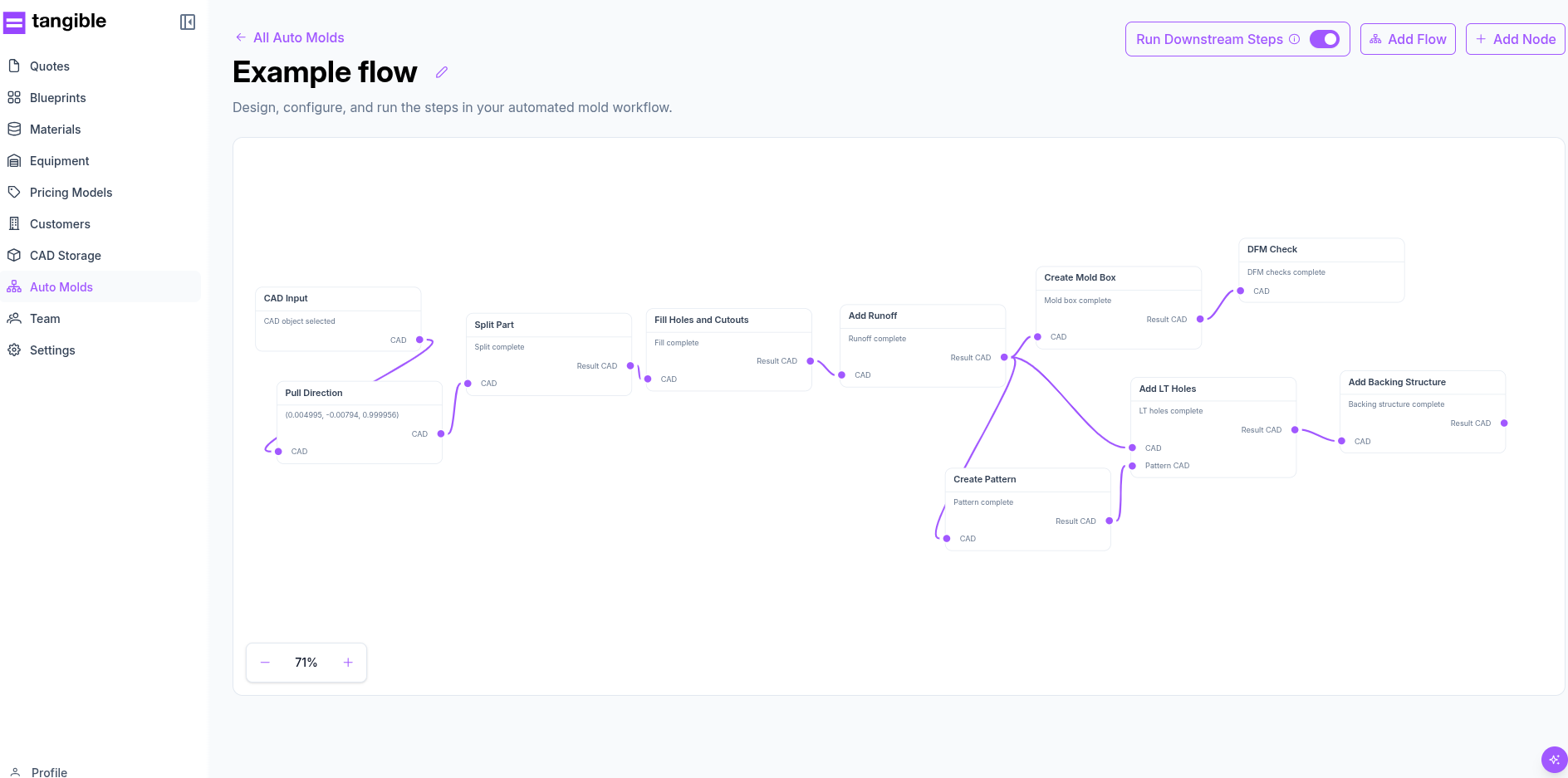

Clear UI flow

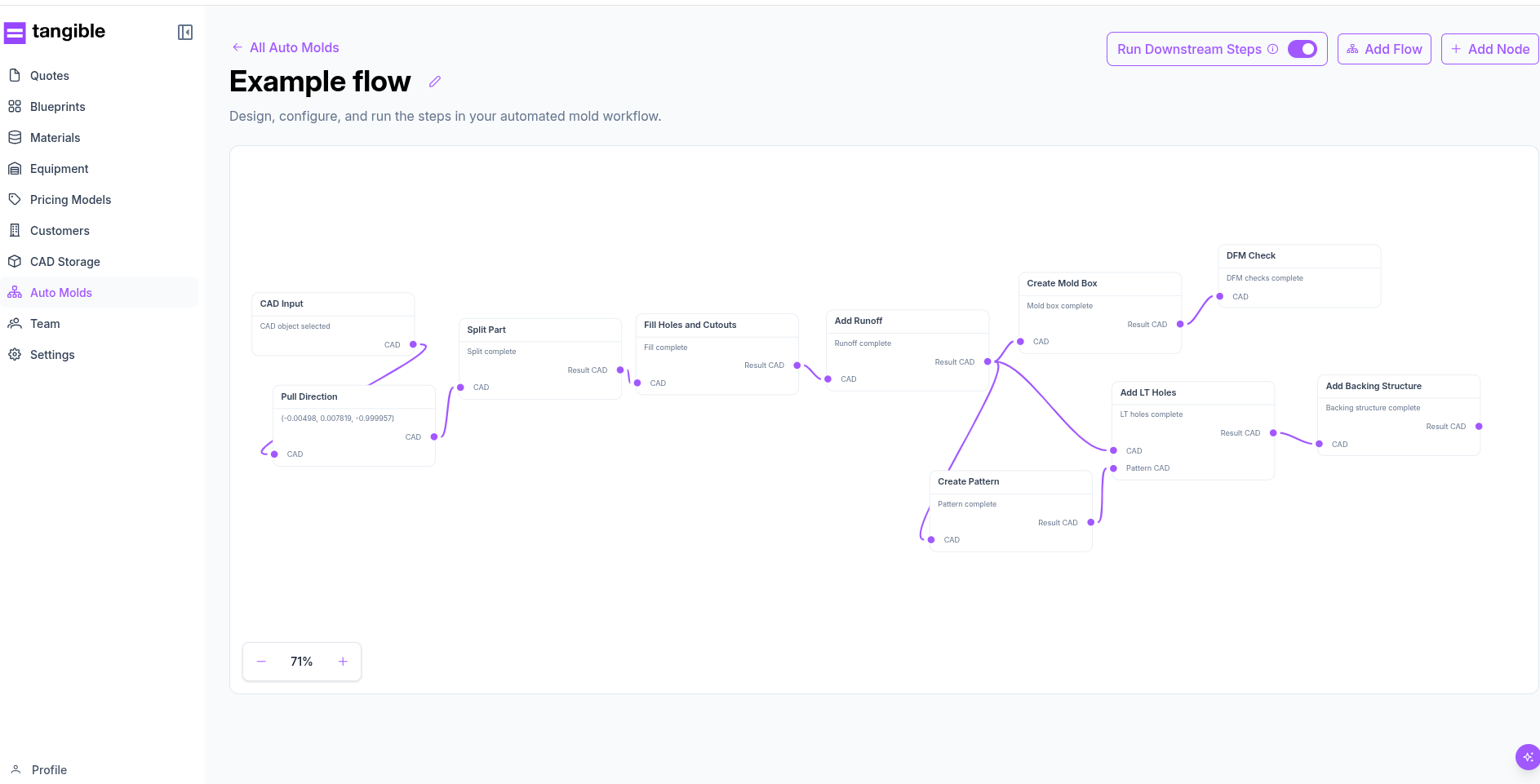

An easy to understand UI interface lets you easily see the steps in your mould generation process, and add, edit or remove any nodes.
